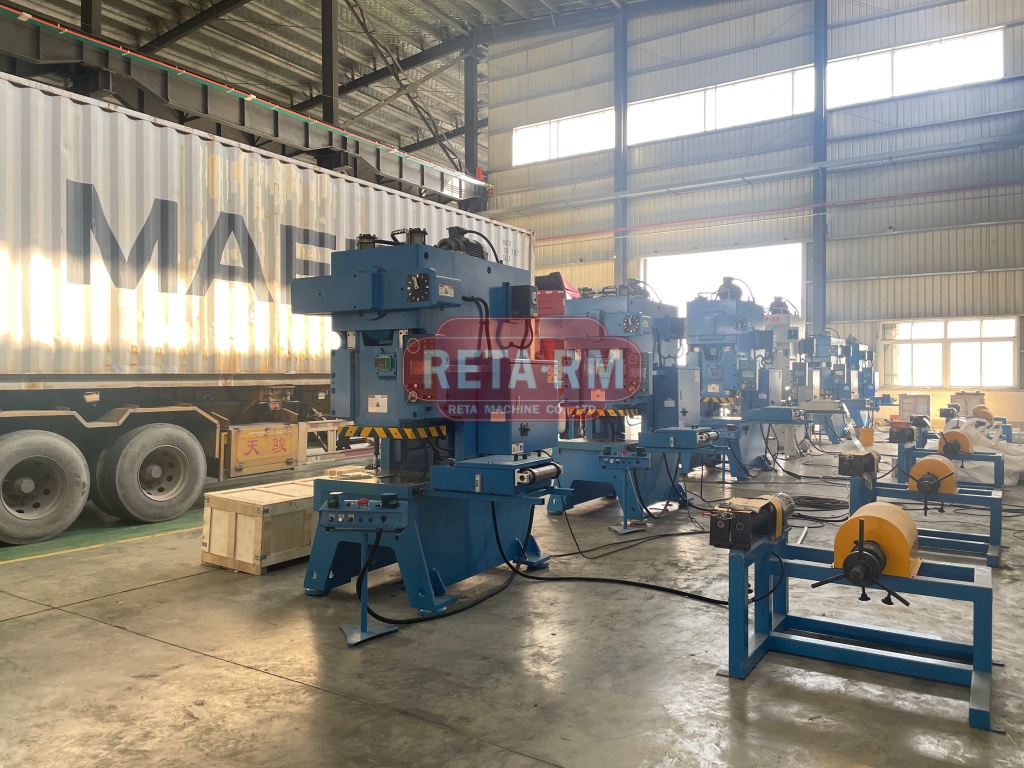

C TYPE FIN PRESS LINE PARAMETER:
Item | Specification | ||||||
| Model | CFP-45B | CFP-45C | |||||
| Capacity | KN | 450 | 450 | ||||
| Pressure Stroke | mm | 1.6 | |||||
| Slide-Strokes | mm | 40 | 50 | 60 | 40 | 50 | 60 |
| Max.Stroke Per Minute | S.P.M | 200 | 180 | 160 | 250 | 200 | 180 |
| Min.Stroke Per Minute | S.P.M | 120 | |||||
| Die Height | mm | Max270 | |||||
| Die Height Adjustment | mm | 60 | |||||
| Deep Throat | mm | 290 | 330 | 350 | |||
| Bottom Size of Slide(LR×FB) | mm | 400×300 | 530×340 | 530×340 | |||
| Table Size(LR×FB) | mm | 850×580 | 850×660 | 850×700 | |||
| Thickness of Table | mm | 80 | |||||
| Main Motor | KW | 5.5 | |||||
| Width of Material | mm | ≤330(Customizable) | |||||
| Stack Length | mm | 1200/1500/2000 | |||||
| Collecting Height of Material | mm | 630 (Customizable） | |||||
| Coil ID | mm | φ75/φ150 | |||||
| Coil OD | mm | φ850 | |||||
| Overall Size (L×W×H) | mm | 6400*2000*2700 | |||||
| Weight | kg | 4800 | |||||

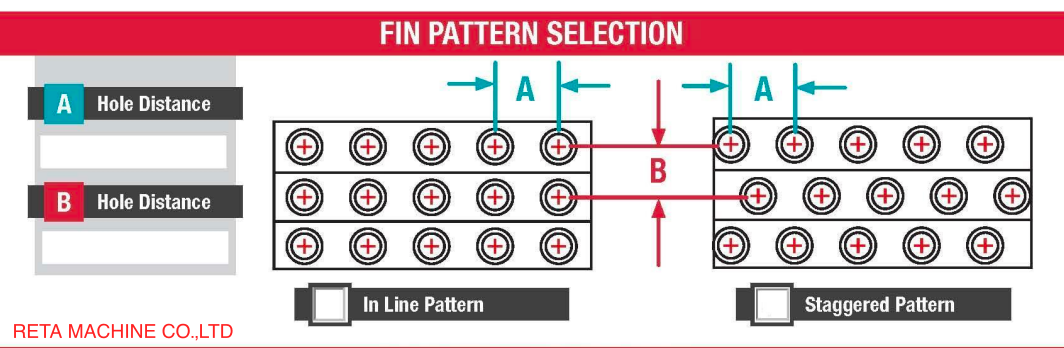

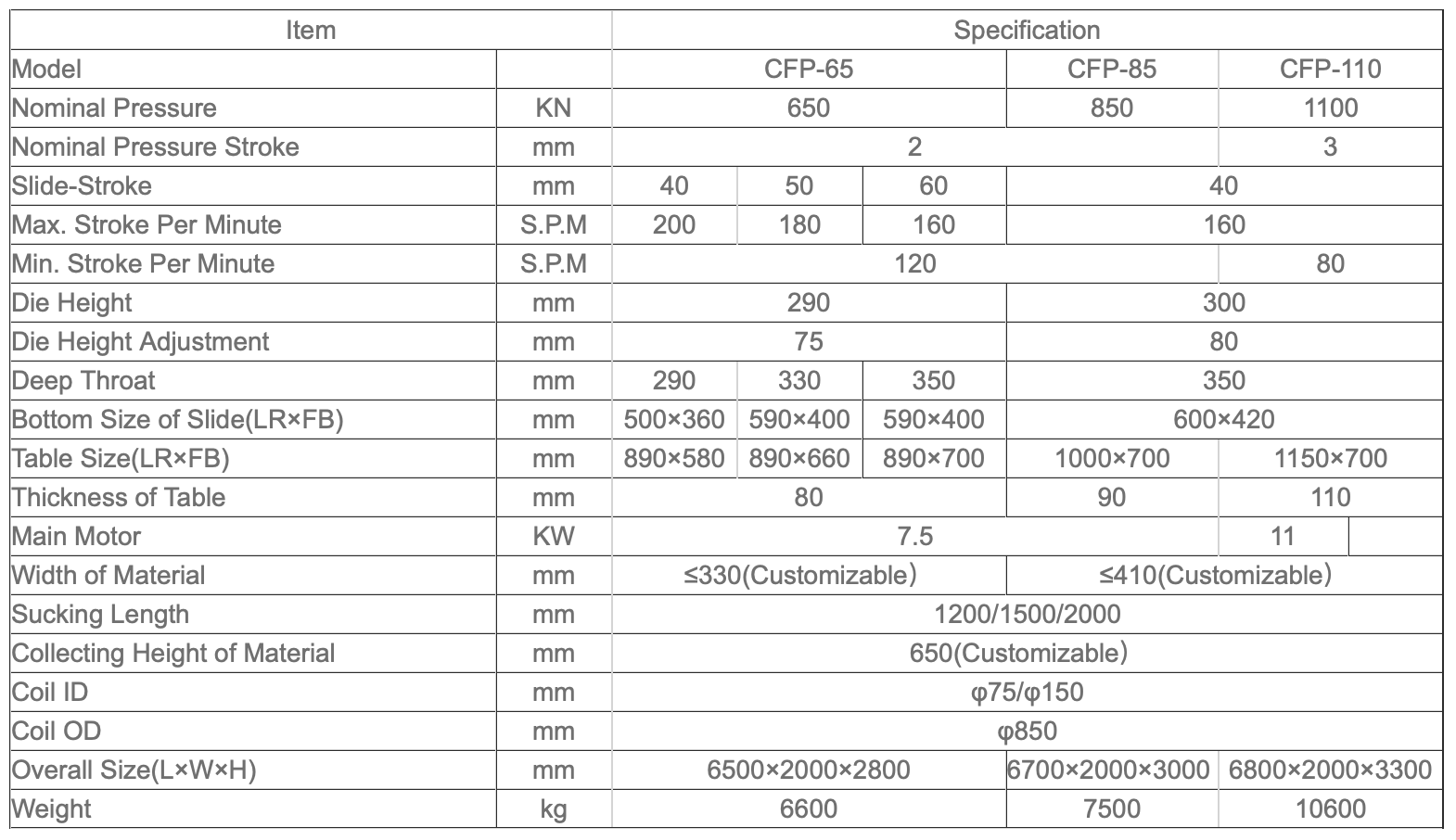

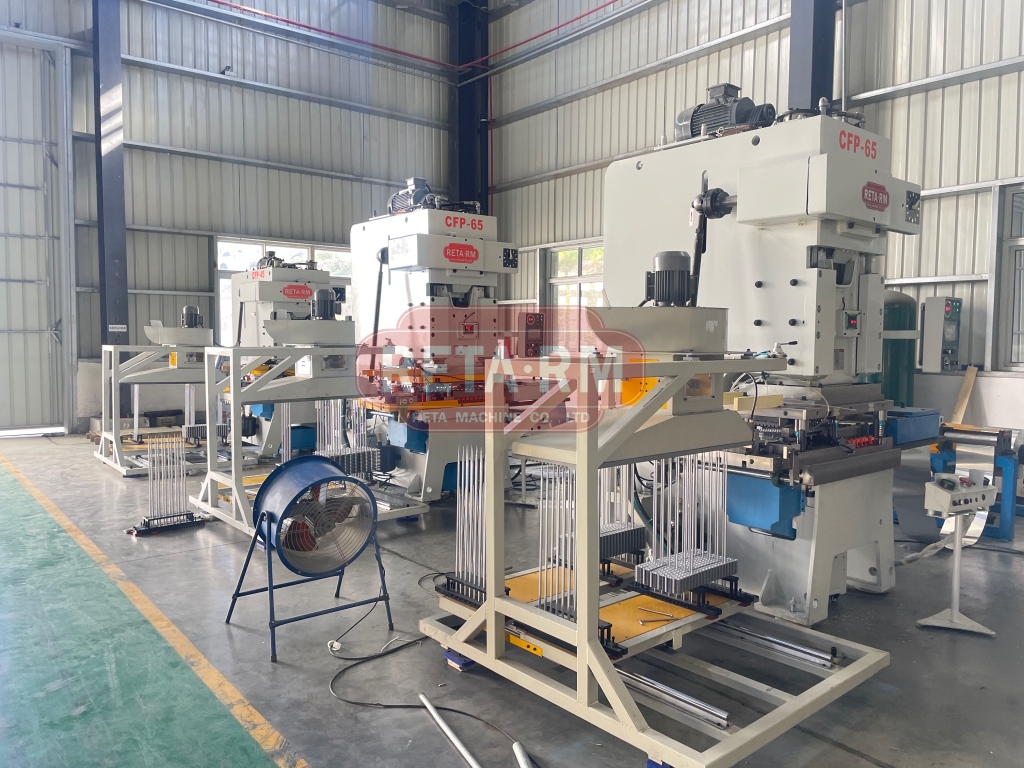

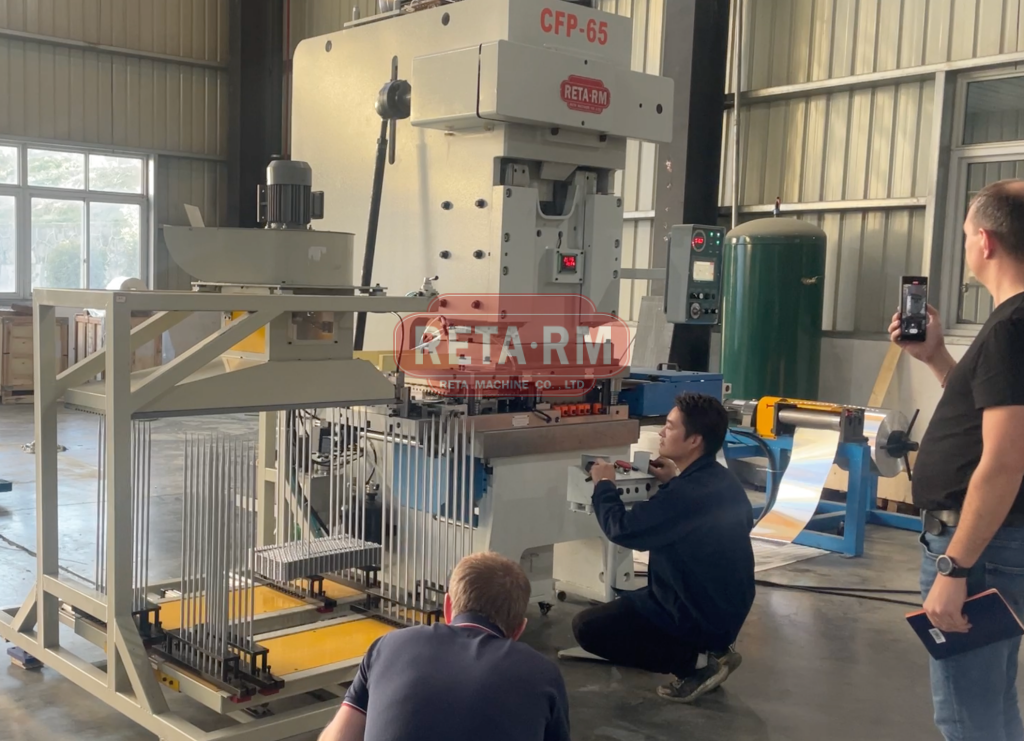

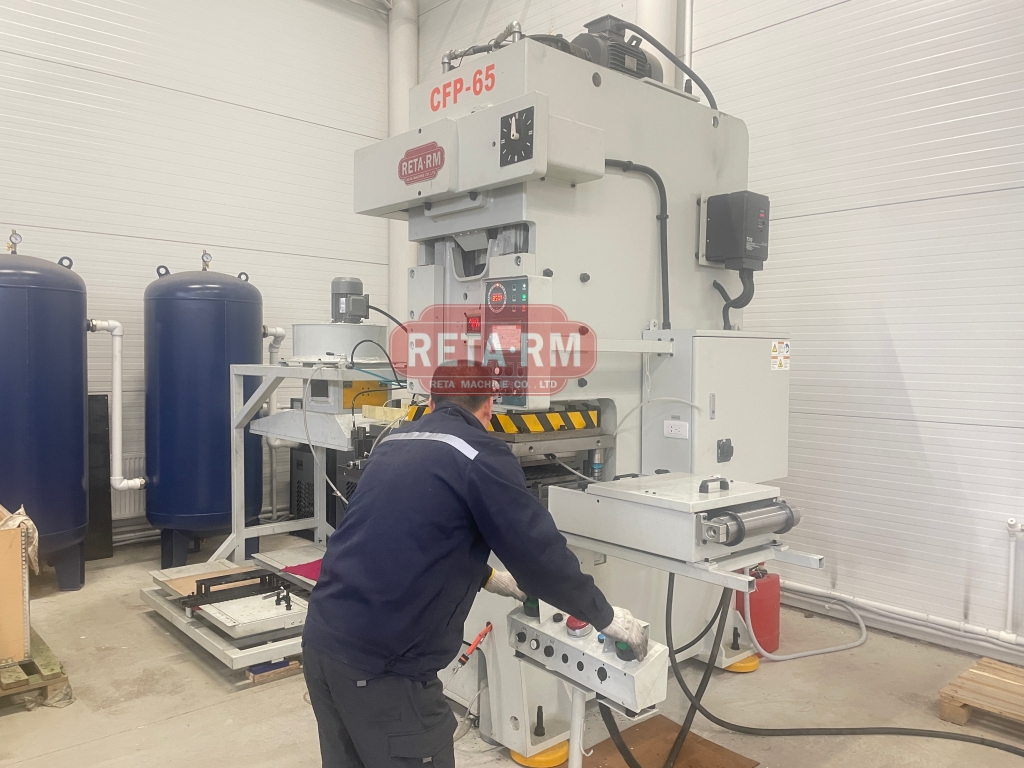

Item | Specification | ||||||
| Model | CFP-65 | CFP-85 | CFP-110 | ||||
| Nominal Pressure | KN | 650 | 850 | 1100 | |||
| Nominal Pressure Stroke | mm | 2 | 3 | ||||
| Slide-Stroke | mm | 40 | 50 | 60 | 40 | ||
| Max. Stroke Per Minute | S.P.M | 200 | 180 | 160 | 160 | ||
| Min. Stroke Per Minute | S.P.M | 120 | 80 | ||||
| Die Height | mm | 290 | 300 | ||||
| Die Height Adjustment | mm | 75 | 80 | ||||
| Deep Throat | mm | 290 | 330 | 350 | 350 | ||
| Bottom Size of Slide(LR×FB) | mm | 500×360 | 590×400 | 590×400 | 600×420 | ||
| Table Size(LR×FB) | mm | 890×580 | 890×660 | 890×700 | 1000×700 | 1150×700 | |
| Thickness of Table | mm | 80 | 90 | 110 | |||
| Main Motor | KW | 7.5 | 11 | ||||
| Width of Material | mm | ≤330(Customizable） | ≤410(Customizable） | ||||
| Sucking Length | mm | 1200/1500/2000 | |||||
| Collecting Height of Material | mm | 650(Customizable） | |||||
| Coil ID | mm | φ75/φ150 | |||||
| Coil OD | mm | φ850 | |||||
| Overall Size(L×W×H) | mm | 6500×2000×2800 | 6700×2000×3000 | 6800×2000×3300 | |||
| Weight | kg | 6600 | 7500 | 10600 | |||

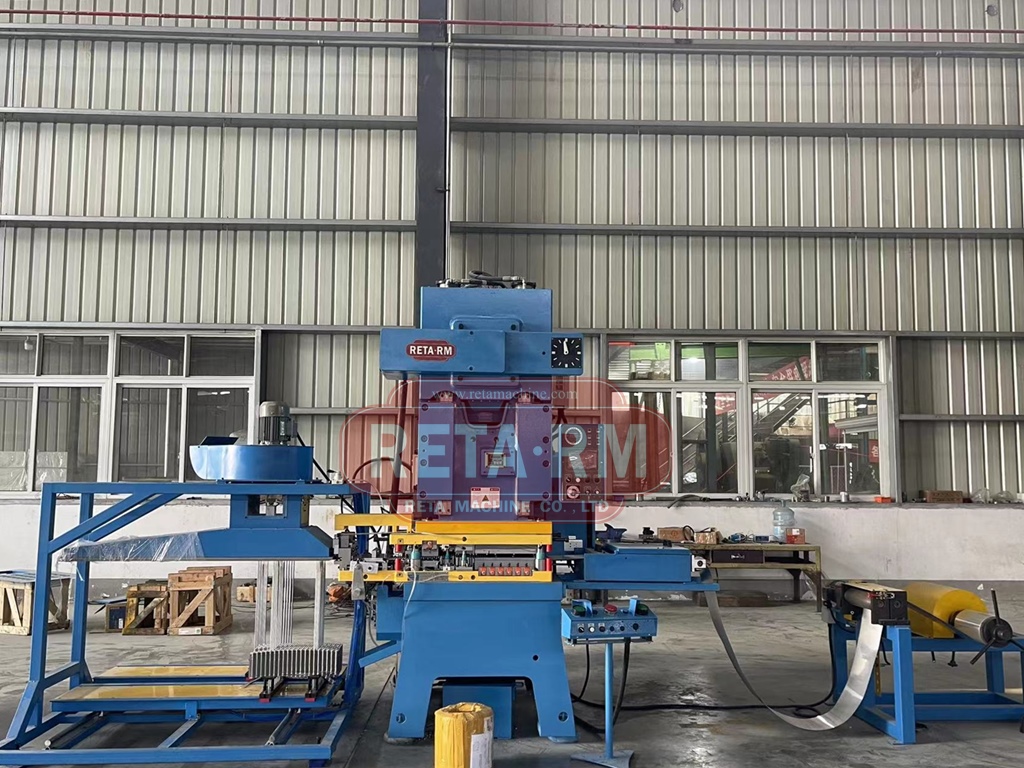

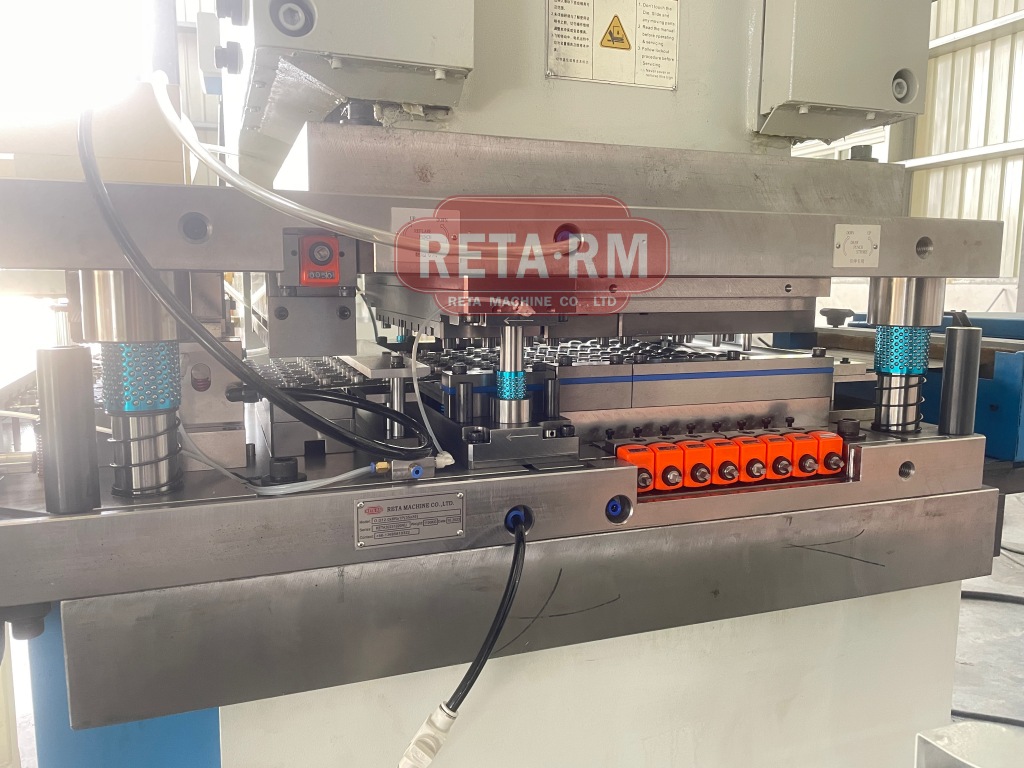

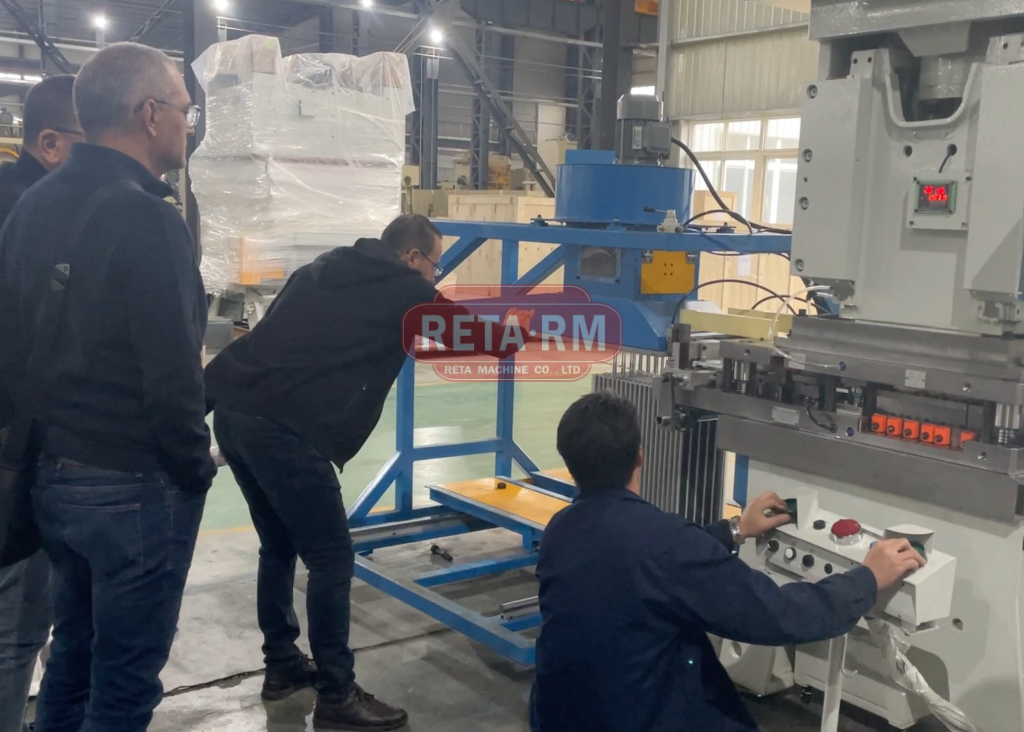

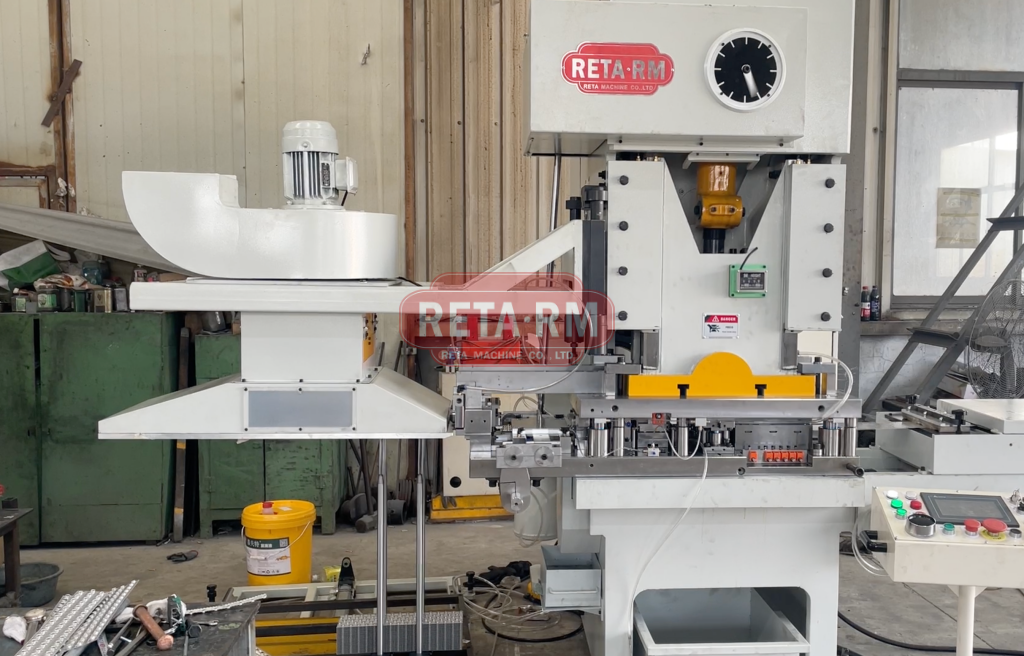

,1.This Fin press line is the latest design for fin punching production line use Taiwan's technology;
2. The main composition: Aluminum foil uncoiling mechanism (photoelectric induction automatic discharge), aluminum foil protective device, oil device, new design & low noise)
3.At high speed precision press, high speed precision fin die, single and double jump mechanism(optional), foil pulling mechanism, latest designed guide rod type fin stacking device, scrap collecting device, man-machine interface, professional electrical control system etc.
