Processing range of Copper Tube: O.D12.7mm ~ O.D45mm x 2.0mm (W.T) Machine Processing Tube length range: 400mm ~ 1600mm Linear motion precision (Servo Drive): +/-0.05mm Rotary Motion accuracy (Servo Drive): +/-0.05

1.The machine is used to decoil--Straighten & Chippless Cutting; 2.Inserting the fixed length of cutted tube to Insulation tube by Piercing Mechanism;

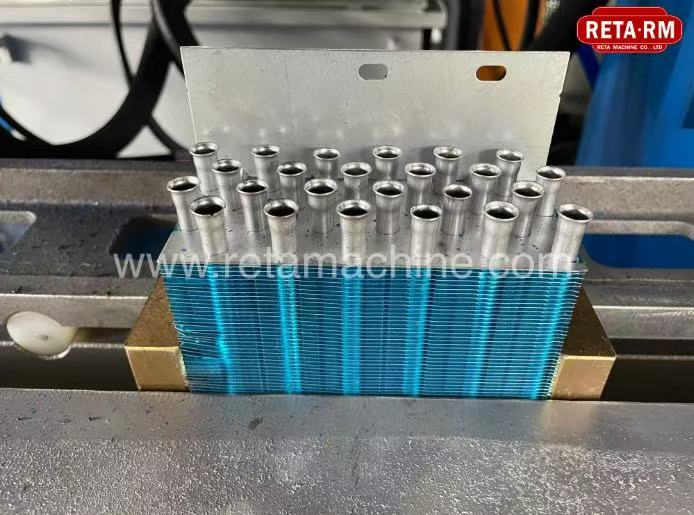

Hydraulic or Servo Vertical Expander is specailly used to expand Fin Heat-Exchanger. The Process of Expanding Pipe and Flaring on one shot in a working Cycle.

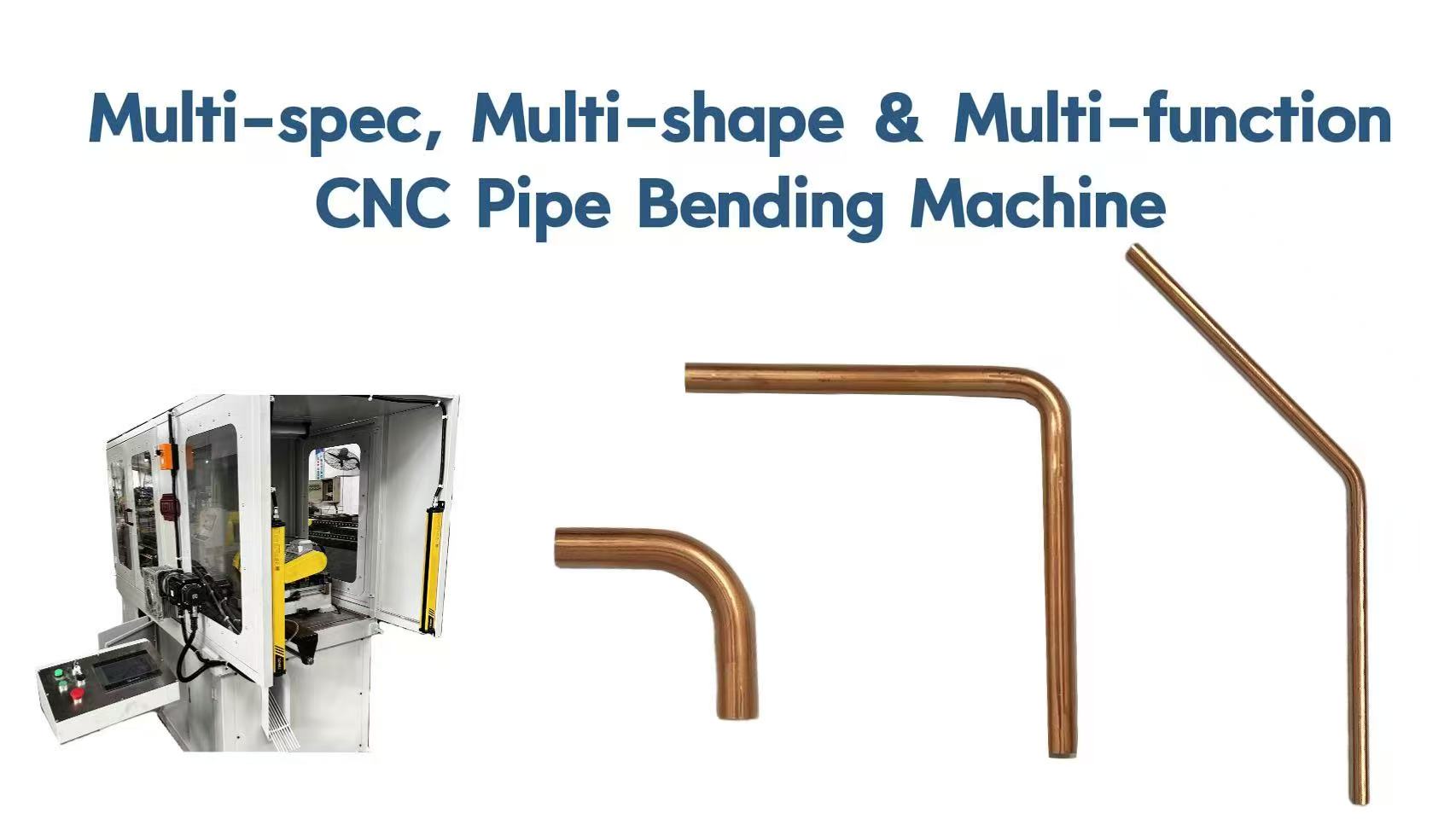

The machine is used to straighten, cut, end form and bend coiled copper pipe,and all operations are carried out in automatic mode which is mostly applied in air- condition tubing industry.

Main performance features of KFP series: ●Composition:Aluminum foil uncoulde mechanism.oil tank,initial feeding equipment(option),closed high-speed precision press,suker collector,electric control system,pneumatic control system,hydraulic control,quick change die device,high and reliable technology with Patent 1P/2P/3P/4P changing system; ●The slide has hydro-lifting function which will be convenient for dies installation/commissioning; ●Power press speed & vacuum sucker is controlled by inverter; ●Collector has protecting system for fault operation,material shortage warming,oil shortage warming; ●Hydraulic overload protection for main machine; ●Equipped with hydraulic rapid-dies changing device,making dies change more quickly and convenient; ●Touch screen and PLC electrical control system ensuring the reliable of the automatic stamping.

Trade name: Evaporative Punching oil · UFI: VA80-E0N0-K00K-775S · 1.2 Relevant identified uses of the substance or mixture and uses advised against · Application of the substance / the mixture: Copper pipe,fin processing lubricant
